Flying Mode Fiber Laser Marking Machines 200W

Flying Mode Fiber Laser Marking Machines 200W

No: ipl-mffib-200

Flying Mode Fiber Laser Marking Machines 200W-We are the factory who always focus on the stable performance of Flying Mode Fiber Laser Marking Machines, and your best partner.

Product Details

Flying Mode Fiber Laser Marking Machines 200W-We are the factory who always focus on the stable performance of Flying Mode Fiber Laser Marking Machines, and your best partner.

Fiber laser flying marking machine is speical desigend by iPrintingMachine company to meet online marking application.It can easy to equip with production line and reach at flying marking application.

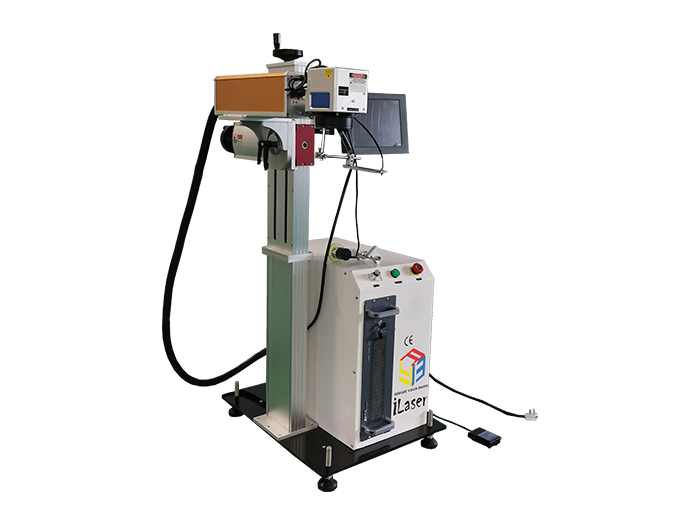

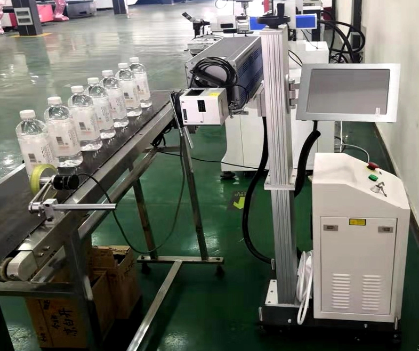

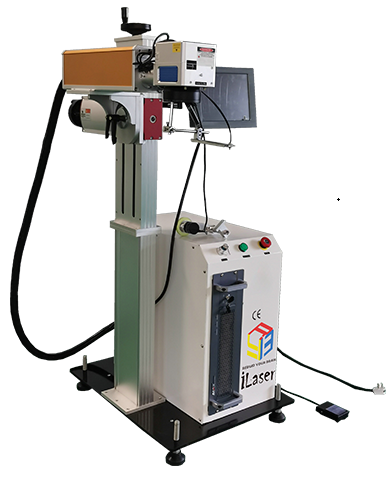

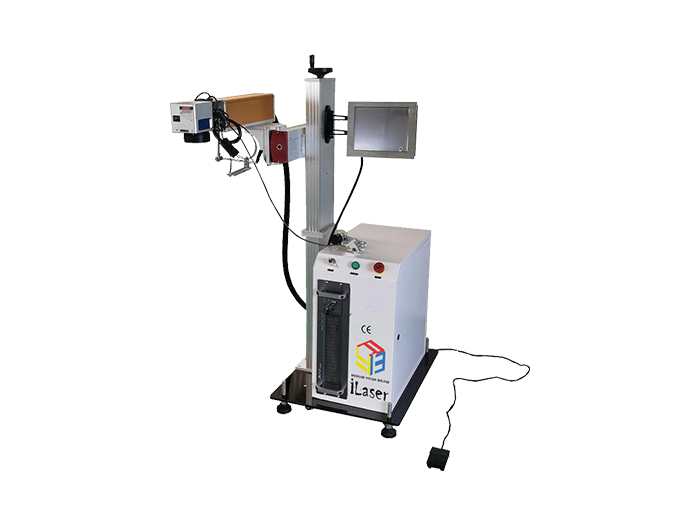

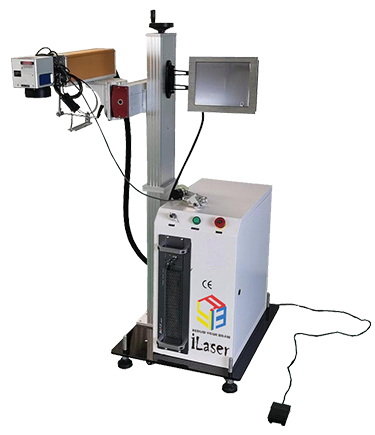

Flying Mode Fiber Laser Marking Machines Photos


image.png   image.png


Flying Mode Fiber Laser Marking Machines Advantages


iLaser Fiber flying laser marking machine is specially designed to equip on production line and pipeline worktable in your factory or being made by us to reach flying marking application at high speed.

1. More compact machines and the whole machines control under Windows System ,XP , Linux System etc.

2. Working time : 100000 hours.

3. Without  any consumptive materials.

4. The laser head is with 360°rotation angle,so the laser beam can be parallel,vertical,oblique at any angle.

5.The laser head is fixed on a trestle and easily to adjust the height and distance from the object.


Application & Materials Display







Beijing Printing Machine CO.,Ltd is a professional manufacturer of industrial laser equipment, located in Beijing China.

Since 2013, we have focused on product development and technological innovation, and now we have become a leading enterprise in the industry.

We have complete set of service system including software development, technical support after sales services, etc. Our equipment has excellent performance and stable operation, and our service is 7 * 24 hours.

7 * 24-hour online technical support

Your questions can be submitted at any time, either via email or through any chat tool. We will promptly answer your questions. If necessary, we will solve the problem for you through video.

Our products include Laser Marker machine, Laser Cutter machine, Laser Engraver machine, Laser Welder machine, Flatbed/Roller UV Printers, 3D Vertical (UV) Wall Painting robots, 3D Vertical (UV) Wall inkjet Printing machine, 3D heat transfer DTF printers, etc. Our products have been exported to 180 different countries and regions.


Product parameters

Output Power
200W
Input power
0.6KW
Electrical source
220v/50Hz
Linear speed
800 character/s
Marking Linear speed
≤12,000mm/s
Marking scope
110mm×110mm (OR OPTIONAL)
Min.line width
0.012mm
Min. character size
0.15mm
Repeat accuracy
±0.003mm
Wavelength
1060nm
Repeat frequency
10KHz ---100KHz
Beam quality
<1.5
Beam Divergence
-0.3 ---+0.3mrad
Pulse Energy
2mJ
Laser Class
IV
Resolution
18μ
Repeatability
50μ
